StarPin Logo

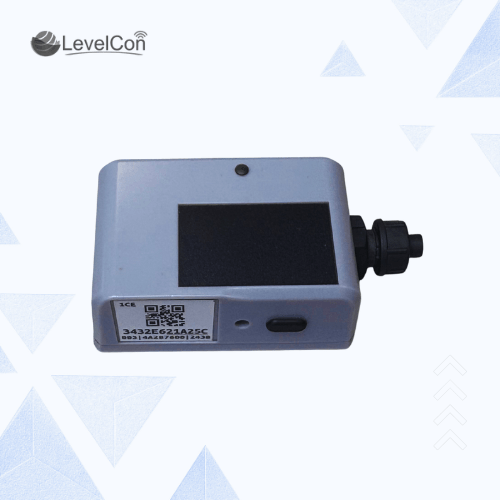

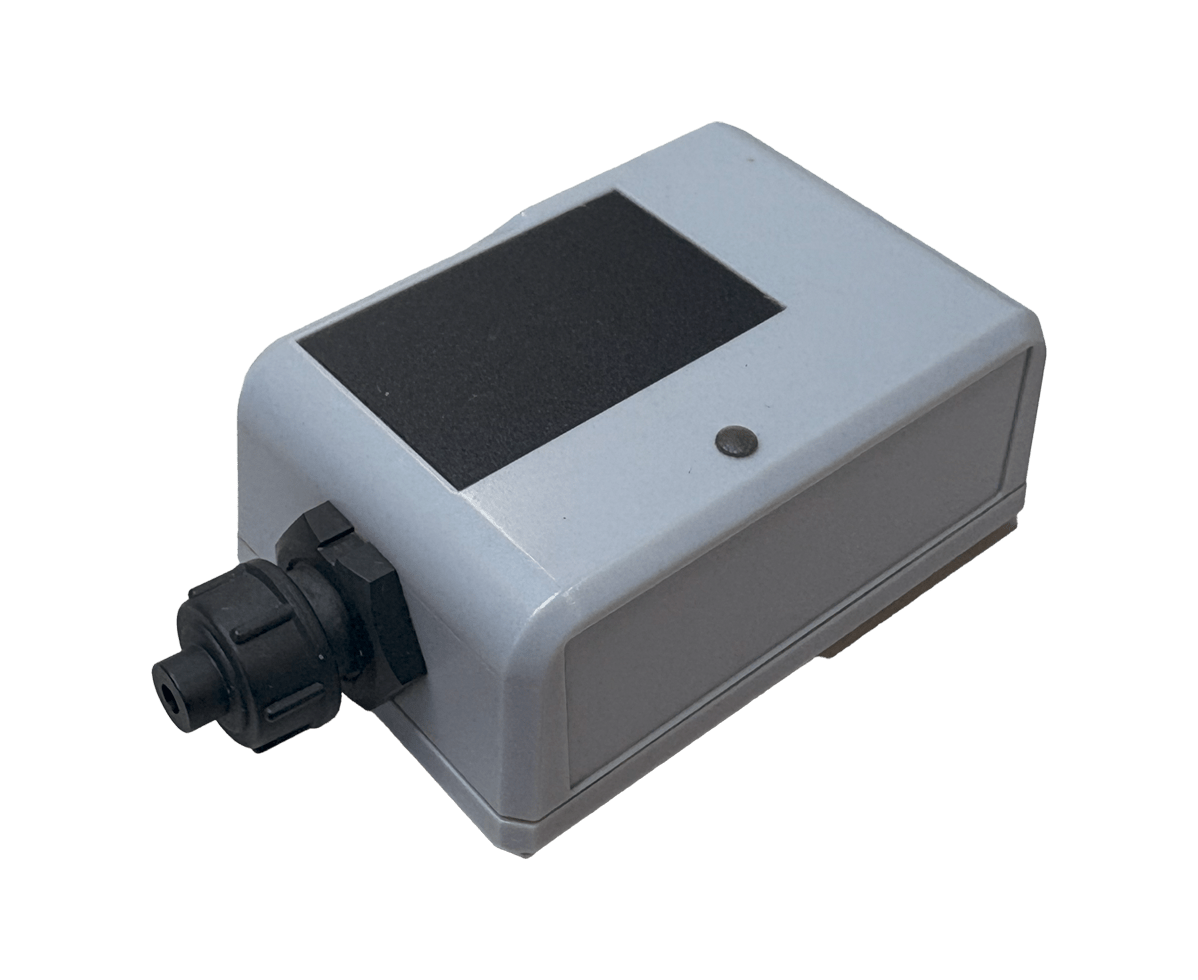

LevelCon’s most advanced remote monitoring device, the fully CID1 certified LTE Cat-M1/NB-IoT StarPin packs a huge punch in a small footprint. This extremely efficient and highly durable sensor node offers excellent cost savings with a long-term life expectancy. Offering a no battery, maintenance-free approach to remote asset monitoring and asset tracking.

StarPin Network Connectivity and Security Features

Cellular Communication

Remote Communication :
LTE CATM1/ NB – IOT

Local Communication:
BLE, Bluetooth Low Energy

Other Communications:
Super SIM for optimal Data Transfer

Secure Protocol :
HTTPS

API Supported :
Json API, multiple API configurations accepted

  • Remote Communication : LTE CATM1/ NB – IOT
  • Local Communication: BLE, Bluetooth Low Energy
  • Other Communications: Super SIM for optimal Data Transfer
  • Secure Protocol : HTTPS
  • API Supported : Json API, multiple API configurations accepted

Sensor Technology and compatibility

External locking system :
Connect any industrial Sensor, delivering Data at optimal price

Sensors Supported :
 Submersible Hydrostatic Pressure Sensor
 Industrial High PSI sensors
 Bluetooth Sensors
Non-Contact: Radar and Ultrasonic Sensors

Propane Sensors and Dials
Others (MODBUS and any Serial Sensors)

  • External locking system to connect any industrial Sensor, delivering Data at optimal price
  • Sensors Supported:
    • Submersible Hydrostatic Pressure Sensor
    • Industrial High PSI sensors
    • Bluetooth Sensors
    • Non-Contact: Radar and Ultrasonic Sensors
    • Propane Sensors and Dials
    • Others (MODBUS and any Serial Sensors)
      • Flowmeters
      • Gas Meters
      • VFD’s

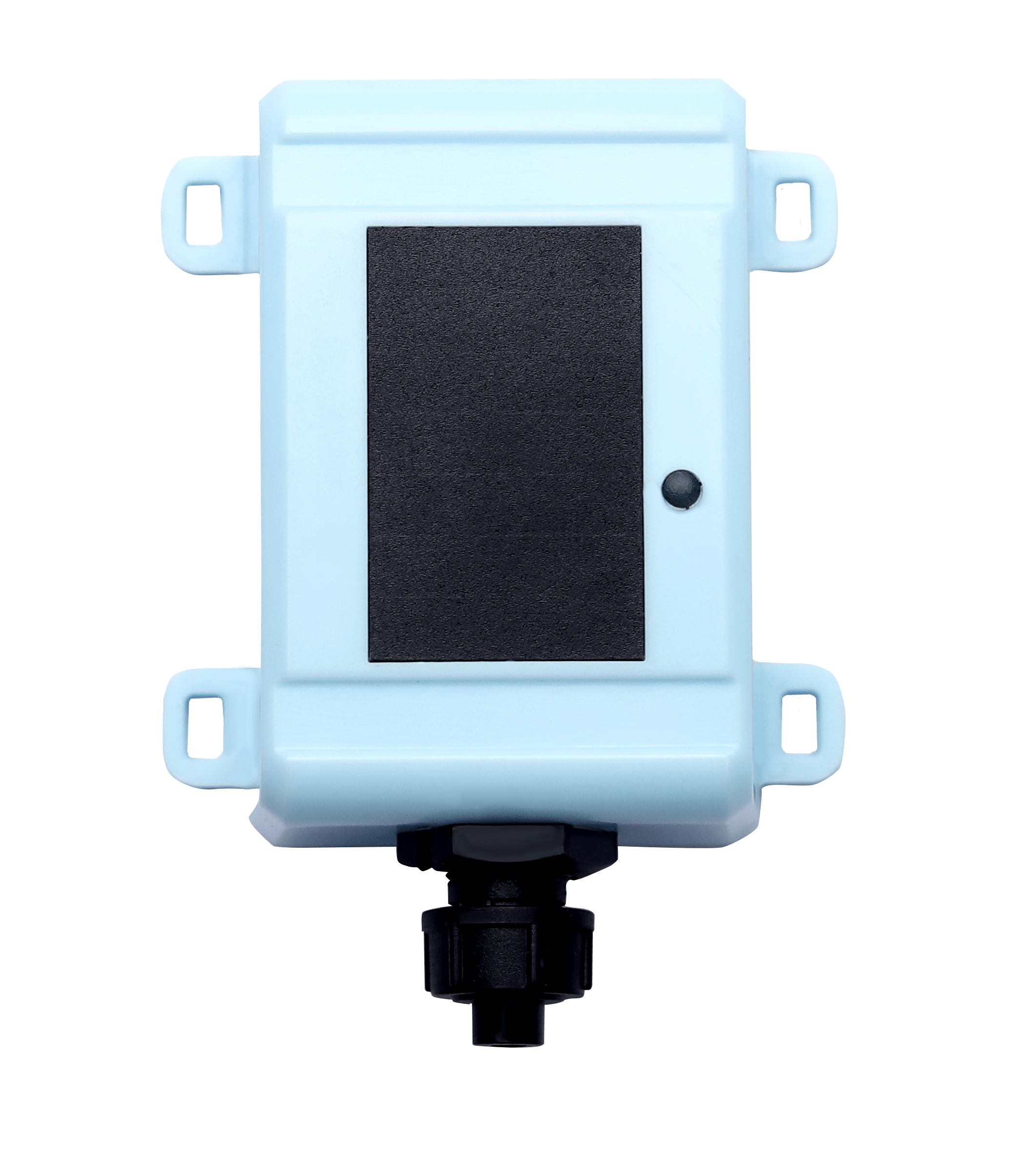

Solar Power

No Power!! No Problem!!

Levelcon’s unique Solar Harvesting : Integrated powerful micro-solar panel. Operates from the energy stored from solar energy to a Supercapacitor.

Low Cost Maintenance : Solar charging system provides power for up to 10 years. USB power option


  • No Power!! No Problem!!
  • Levelcon’s unique Solar Harvesting
    • Integrated powerful micro-solar panel
    • Operates from the energy stored from solar energy to a Supercapacitor.
  • Low Cost Maintenance:
    • Solar charging system provides power for up to 10 years.
    • USB power option

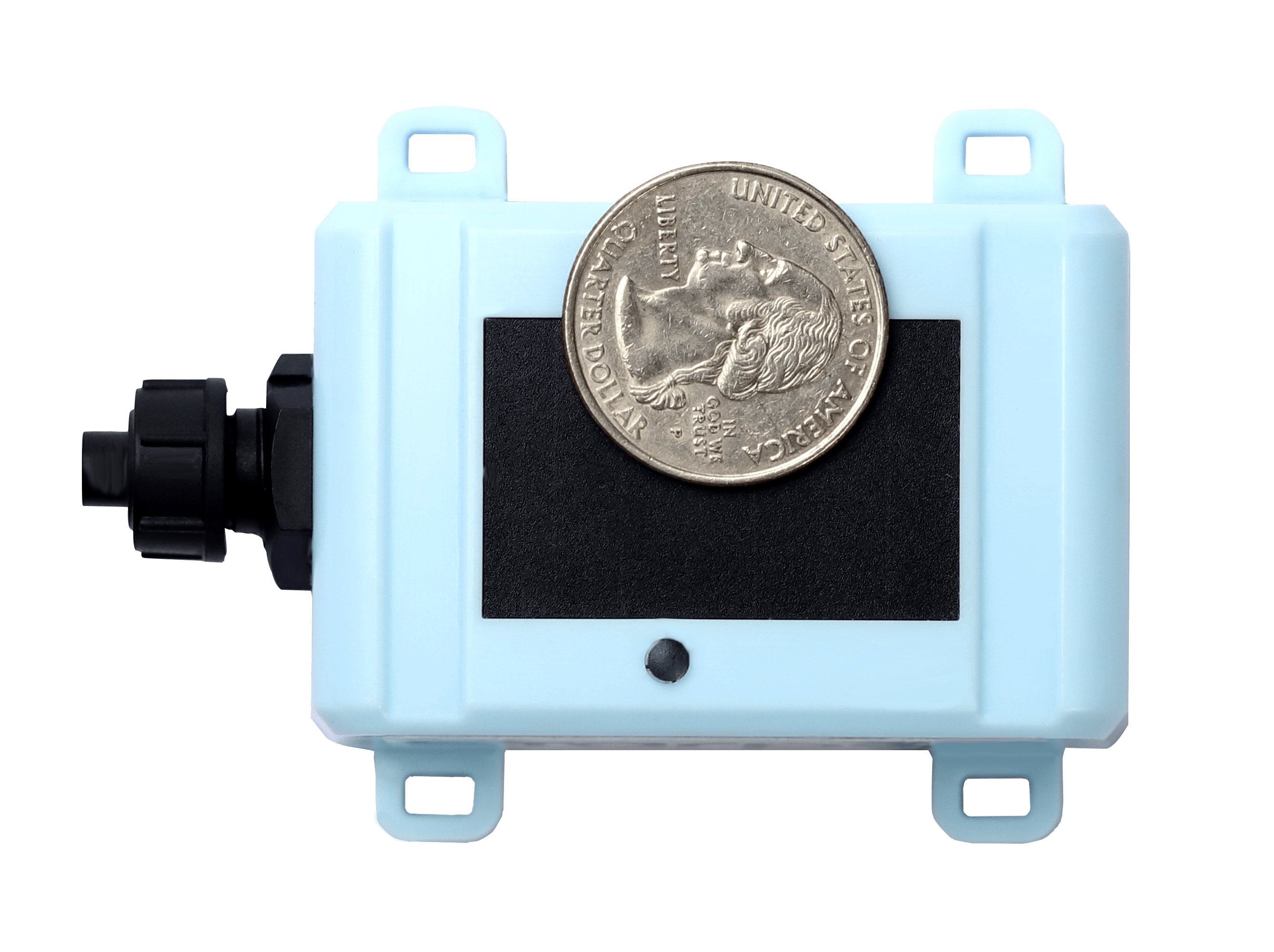

Installation made easy

  • Magnetic installation to any metal tank
  • CID1 certification for installation in hazardous locations.
  • Strap openings make it easy to install on Non-Metallic Surface
  • Light weight, Sleek and ruggedized design makes it perfect fit for Mobile/Stationary Asset monitoring

Magnetic installation to any metal tank

CID1 certification : Installation in hazardous locations

Strap openings : Easy to Install on Non-Metallic Surface

Light weight, Sleek and ruggedized design : Perfect fit for Mobile/Stationary Asset monitoring

Class I Division 1 Certified  for hazardous location deployment.

Simple integration and compatibility with any industry standard  sensing technology.

Built  in Micro Solar system provides10 year solar power source & 3AA battery redundancy

GPS enabled for Global mobile asset tracking

24/7 data access via the LevelCon Portal and Phone App. free  API services available.

PRODUCT NAMELevelcon StarPin
PRODUCT DESCRIPTIONSolar Powered cellular enabled telemetry and tracking device with Bluetooth connectivity and shock/ motion detection . Support any industry standard sensing technology.
DIMENSIONSHeight 64 mm
Width 44 mm
Depth 27 mm

Request More Information

Put LevelCon to the test and let the power of our technology and years of experience  provide you with the best monitoring solution available. For more information, or to schedule a demo, contact us.





Shopping Cart
PRODUCT DESCRIPTIONSolar Powered cellular enabled telemetry and tracking device with Bluetooth connectivity and shock/ motion detection . Support any industry standard sensing technology.
DIMENSIONSHeight 64 mm
Width 44 mm
Depth 27 mm
INPUT/OUTPUT1 Analog Input , configurable for 0-5v or 4-20mA.
RS485 sensor daisy chaining capable.
POWER REQUIREMENTSSolar power harnessing to super capacitor.
5vdc built in USB charging port.
Battery Life / Power up to 10 years of power with solar augmentation.
Wireless ConnectivityCellular- CatM1 LTE . NB-IoT , GPRS *
Bluetooth - 4.0 and above Bluetooth Connectivity.
Data SecurityAES 128 bit encryption
Data PacketJson Formatted data packet
Software Update OTA - over the air firmware updates are provided as new features and enhancements are released.
Temperature Rangeoperating -40 C-->65C , Storage-50c -->80c
CertificationEnvironmental- class 1 Division 1 Group D for hazardous are deployment.
IP66 rated custom enclosure
