F100M

Advanced Sensor Node

F100M Logo

Equipped with an M1-LTE / NB-IoT module, a multi-carrier sim, and an optional Globalstar satellite fallback, the newly redesigned F100MX is the most unique and powerful remote monitor on the market. We have designed the F100M for global deployment in the toughest of situations and most challenging locations.
F100 paired with the LevelCon app and cloud portal, access levels directly from any smart device and enjoy easily configured email and text notifications for level changes and fill events.

F100M Top View

F100M Network Connectivity and Security Features

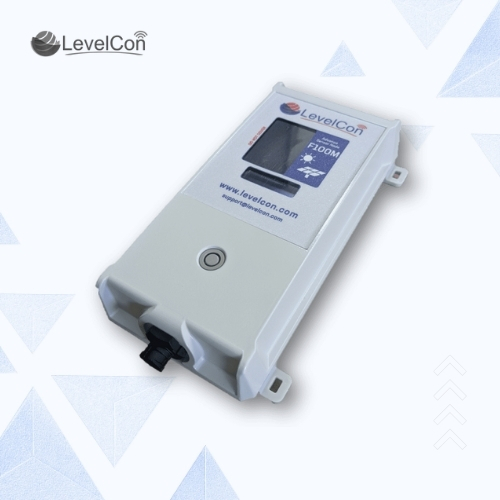

F100M Device

Cellular Communication

  • Cellular Communications :
     LTE CAT-M1 and NB-IoT connectivity support, SuperSim to enable seamless international communication.
  • Local Communication:
    Bluetooth Low Energy ( BLE )
  • Satellite Communications:
    • GlobalStar Satellite connectiviety (optional).
  • Secure Protocol :
    HTTPS
  • API Supported :
    Json API, multiple API configurations accepted

Cellular Communications : LTE CATM1 / NB-IoT, SuperSim for international communication

Local Communication: BLE, Bluetooth Low Energy

Satellite Communications : GlobalStar- Optional Cellular monitor with Satellite fallback

Secure Protocol : HTTPS

API Supported : Json API, multiple API configurations accepted

Sensor Technology and compatibility

External locking system:  Connect any Industrial Sensor, delivering data at optimal price

Sensors Supported Submersible Hydrostatic Pressure Sensor. Industrial High PSI sensors. Bluetooth Sensors. Non-Contact: Radar and Ultrasonic Sensors. Propane Sensors and Dials. Others (MODBUS and any Serial Sensors)

  • External locking system to connect any industrial Sensor, delivering Data at optimal price
  • Sensors Supported:
    • Submersible Hydrostatic Pressure Sensor
    • Industrial High PSI sensors
    • Bluetooth Sensors
    • Non-Contact: Radar and Ultrasonic Sensors
    • Propane Sensors and Dials
    • Others (MODBUS and any Serial Sensors)
      • Flowmeters
      • Gas Meters
      • VFD’s
F100M Plug View NB-IoT
F100M Top View

Solar Power

No Power!! No  Problem!!

LevelCon’s unique Solar HarvestingIntegrated powerful micro-solar panel. Operates from the energy stored from solar energy to a Super-Capacitor. 3 AA battery backed up solution for indoor applications.

Low Cost Maintenance : Solar charging system provides power for up to 10 years.

  • No Power!! No  Problem!!
  • LevelCon’s unique Solar Harvesting
    • Integrated powerful micro-solar panel
    • Operates from the energy stored from solar energy to a Supercapacitor.
    • 3AA battery backed up solution for indoor applications
  • Low Cost Maintenance:
    • Solar charging system provides power for up to 10 years.

Installation made easy

Magnetic installation to any metal tank :

CID1 certification : For installation in hazardous locations.

Strap openings : make it easy to install on Non-Metallic Surface.

Light weight, Sleek and ruggedized design makes it perfect fit for Mobile/Stationary Asset monitoring.

  • Magnetic installation to any metal tank
  • CID1 certification for installation in hazardous locations.
  • Strap openings make it easy to install on Non-Metallic Surface
  • Light weight, Sleek and ruggedized design makes it perfect fit for Mobile/Stationary Asset monitoring
F100M side view

Class 1 Division 1 Certified  for hazardous location deployment.

Simple integration and compatibility with any industry standard  sensing technology.

Built  in Micro Solar system provides10 year solar power source & 3AA battery redundancy

GPS enabled for Global mobile asset tracking

24/7 data access via the LevelCon Portal and Phone App. free  API services available.

PRODUCT NAMELevelcon F100M
PRODUCT DESCRIPTIONBattery operated Cellular, or Satellite enabled telemetry device with GPS and OLED display. Supports any industry standard sensor. Inbuilt solar power harnessing.
DIMENSIONSHeight 155 mm
Width 96 mm
Depth 37 mm

Request More Information

Put LevelCon to the test and let the power of our technology and years of experience  provide you with the best monitoring solution available. For more information, or to schedule a demo, contact us.





Shopping Cart
PRODUCT NAMELevelCon F100M
PRODUCT DESCRIPTIONBattery operated Cellular, or Satellite enabled telemetry device with GPS and OLED display. Supports any industry standard sensor. Inbuilt solar power harnessing.
DIMENSIONSHeight 155 mm
Width 96 mm
Depth 37 mm
INPUT/OUTPUT1 Analog input, configurable for 0-5V or 4-20mA. Multiple RS485 sensor daisy chaining capable

1 Digital grounding input, alarm capable or 1 digital output software configured
POWER REQUIREMENTS3 AA size Batteries, Energizer Lithium recommended and solar power harnessing

Can also be powered using 6.5 ~ 36 Vdc
BATTERY LIFEUpto 6+ years of Battery life with solar augmentations
TEMPERATURE RANGEOperating -40C->65C, Storage -50C->80C
CERTIFICATIONClass I Division 1 Group D Certification for hazardous area deployment.

IP66 rated enclosure.
