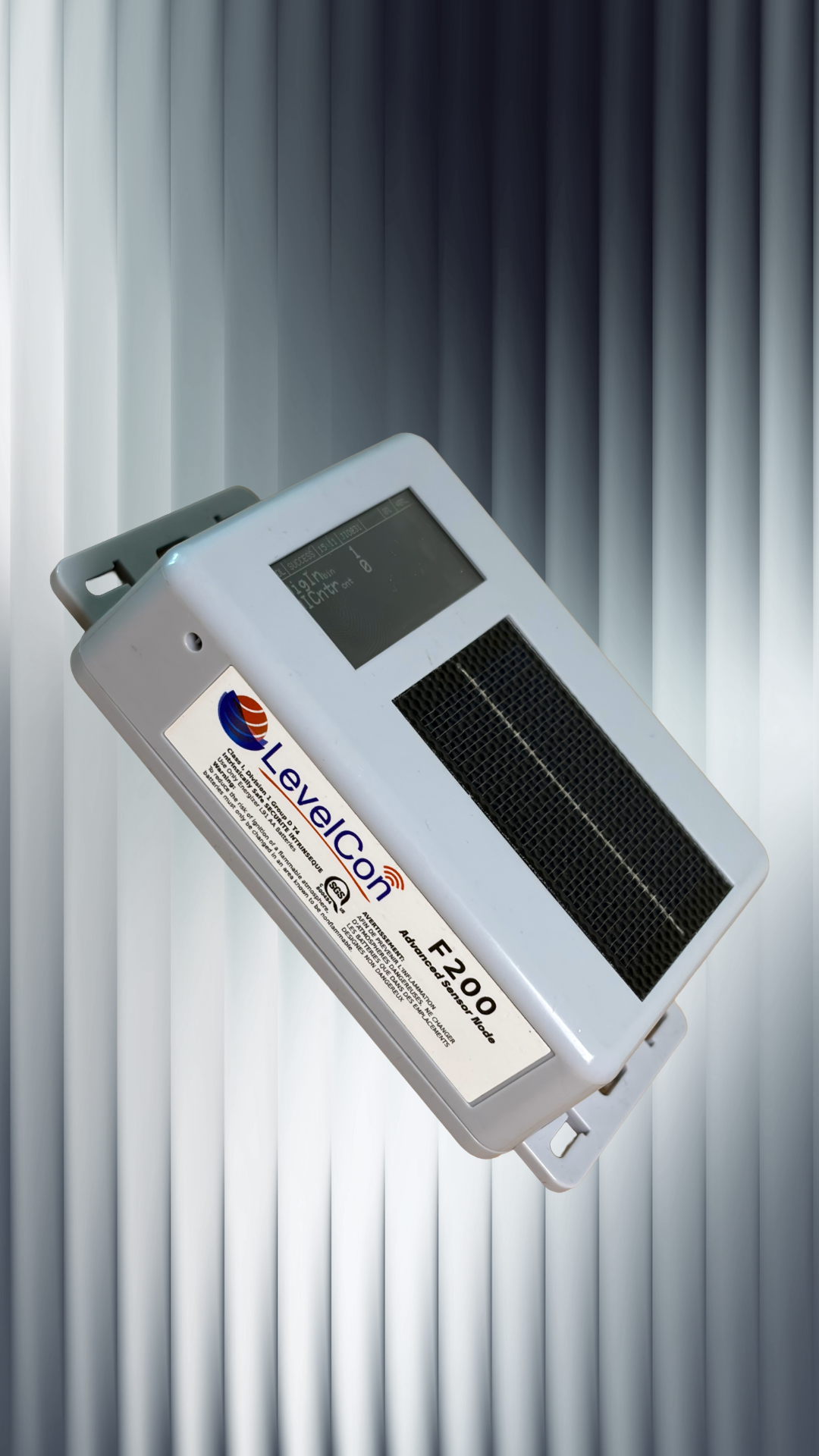

Meet the F200
LevelCon's most advanced 4G cellular gateway — built to connect what matters, anywhere in the field.

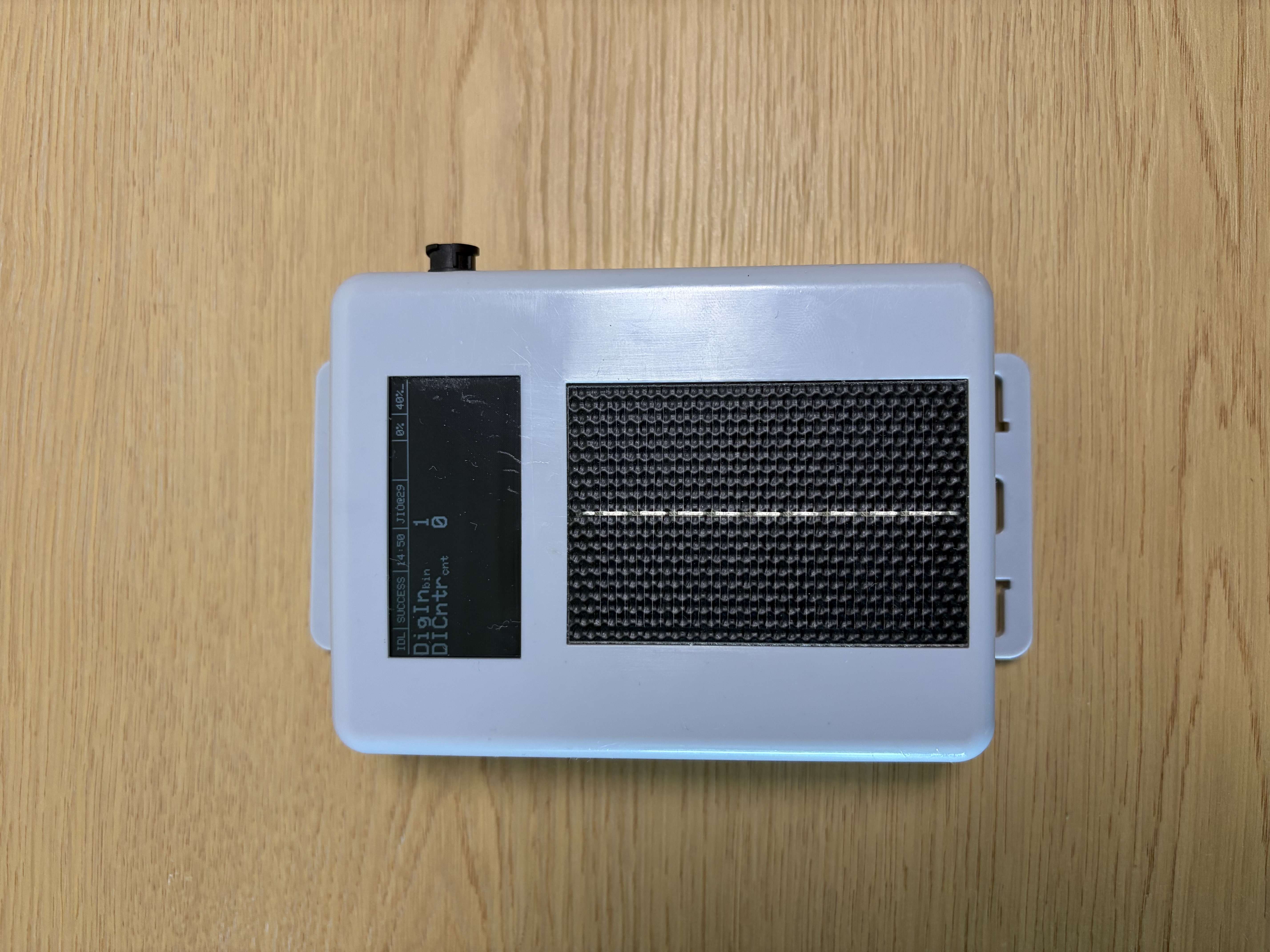

Always-on display
Live level, pressure, and temperature readings right on the device itself, so a field check doesn't require a laptop.
- Always-On Display
Solar powered and battery
The F200 is equipped with a large solar panel and a 450 mAh solar reservoir, delivering up to 6 months of battery life with two reports per day. In addition, it features a primary serviceable battery rated at 6000 mAh, providing up to 6 years of battery life under the same reporting conditions.
- Solar Powered
- 6000 mAh Primary Battery
Speaks every industrial sensor's language

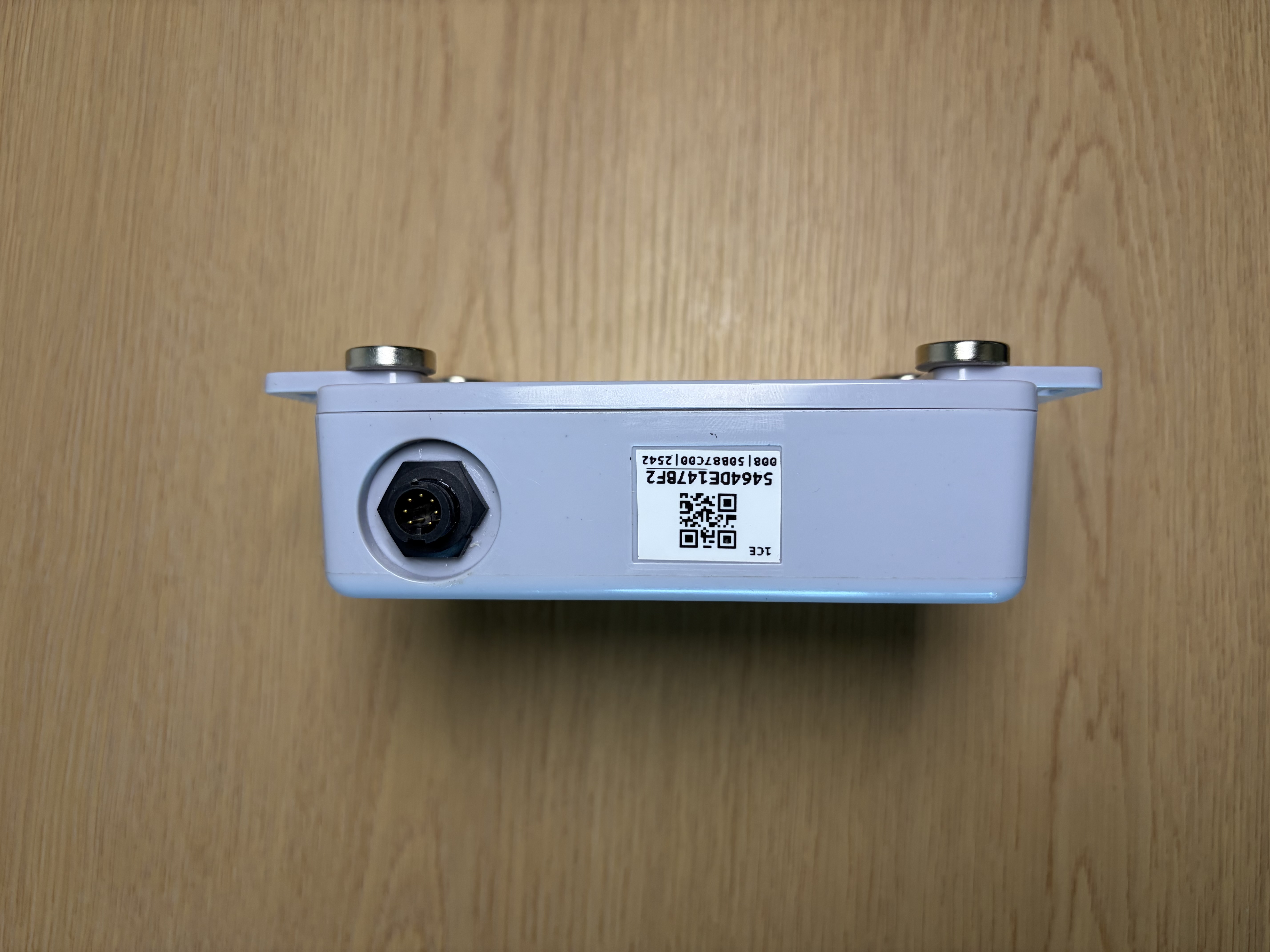

Digital RS-485, RS-232 and i2c sensor inputs. Analog 4-20 mA, and 0-5V inputs. Additionally, the F200 supports high-frequency pulse counting up to 16 MHz — all through a single watertight connector.
- RS-485
- RS-232
- 4-20 mA
- 0-5 V
- Pulse 16 MHz
Engineered for the toughest environments

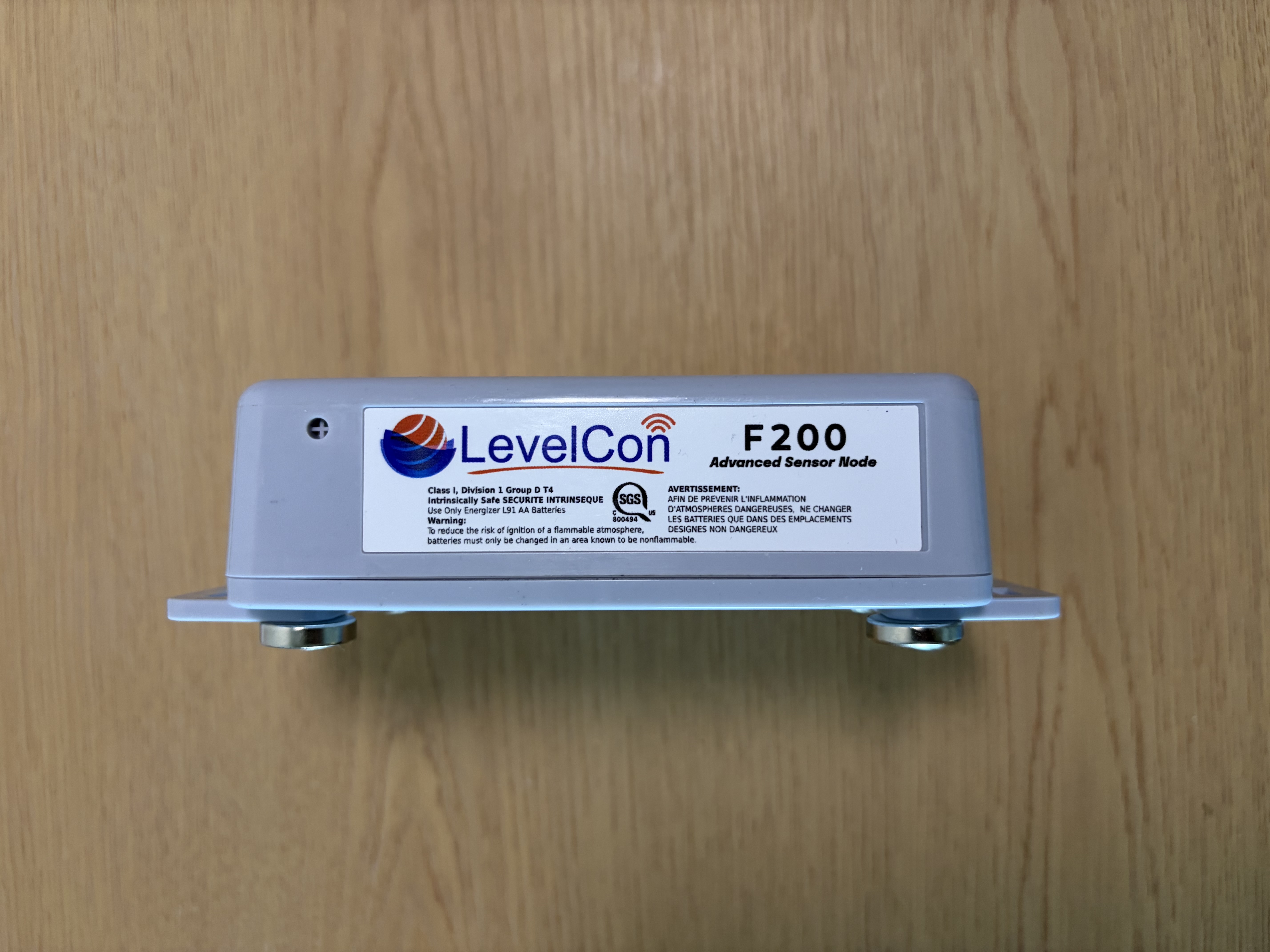

IP67-rated* and certified for Class I, Division 1, Group D hazardous locations, so the F200 deploys with confidence at wellheads, tank batteries, and chemical storage sites.
- IP67
- Class I, Div 1, Group D
- T4 Rated
Always Connected, Easily Located
Advanced 4G LTE keeps every device connected, while the built-in accelerometer activates the multi-GNSS engine when movement is detected—pinpointing your asset’s location exactly when it matters.
- 4G LTE Cellular
- Multi-GNSS Tracking
- Built-in Accelerometer

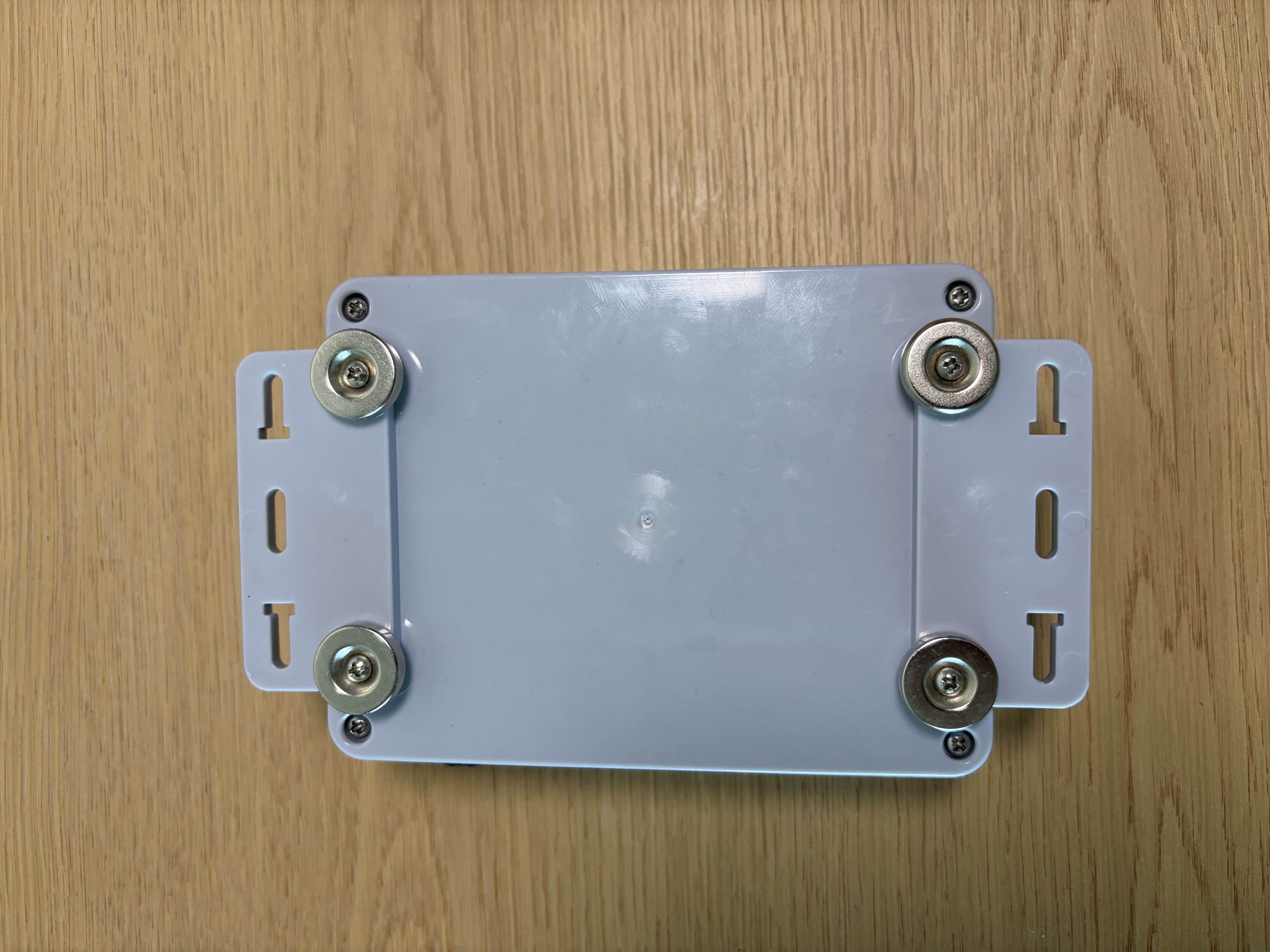

Magnetic mount
If your tank is made up of ferrous metal, simply place the F200 directly onto the tank surface. The built-in magnets hold the device firmly in place no tools required.
Screw mount
For non-ferrous surfaces such as plastic, fiberglass, or concrete, secure the device using the provided screws through the mounting holes.
Scan to Connect
Use the Wireless Connect feature in the LevelCon app to scan the QR code and perform your first forced report.
- 2.4 GHz Wireless Connect
Why the F200
Everything a remote monitoring gateway needs, nothing it doesn't
4G LTE & Multi-GNSS
Advanced 4G LTE connectivity, combined with a built-in accelerometer and motion-activated multi-GNSS, tracks your asset when movement is detected—pinpointing its location exactly when it matters.
5+ years between service visits
With two reports per day, a serviceable 6,000 mAh primary battery and integrated solar reservoir deliver 5+ years of unattended operation.
Universal sensor I/O
Supports RS-485, RS-232, 4–20 mA, and 0–5 V inputs for both analog and digital sensors, along with a 16 MHz pulse counter—all through a single watertight connector.
IP67* & Class I, Div 1, Group D rated
Certified for the toughest, most hazardous industrial environments, including a T4 temperature rating.
Always-on display
Live level, pressure, and temperature readings on the device itself, so a field check doesn't require a laptop.
LevelCon cloud platform
Fleet-wide visibility, alerts, and analytics from a single window, wherever the F200s are deployed.
Specifications
Full technical specifications
Physical
- Dimensions
- 120 mm H × 89 mm W × 36 mm D
- Operating Temperature
- -40°C to +65°C
- Storage Temperature
- -50°C to +80°C
- Assembly
- Mostly assembled in the USA
Connectivity
- Cellular Standard
- Cellular LPWAN (Cat-M1 / NBIOT )- Coming Soon, 4G LTE
- Carrier Support
- Supports all major U.S. and global carriers.
- Security
- AES 128-bit encryption
- Integration
- A secure JSON API is available on request, with support for multiple configuration options.
Sensor Compatibility
- Wireless Sensors
- LevelCon wireless sensor network
- Pressure
- Submersible hydrostatic pressure sensors
- Non-Contact
- Radar and ultrasonic level sensors
- Other Devices
- Propane sensors/dials, Modbus devices, flow meters, gas meters, and VFDs
Support
- Warranty
- 1-year limited warranty
- Technical Support
- 1-year technical support included
- Contact
- +1 (972) 488-8725 · support@levelcon.com
In the Field

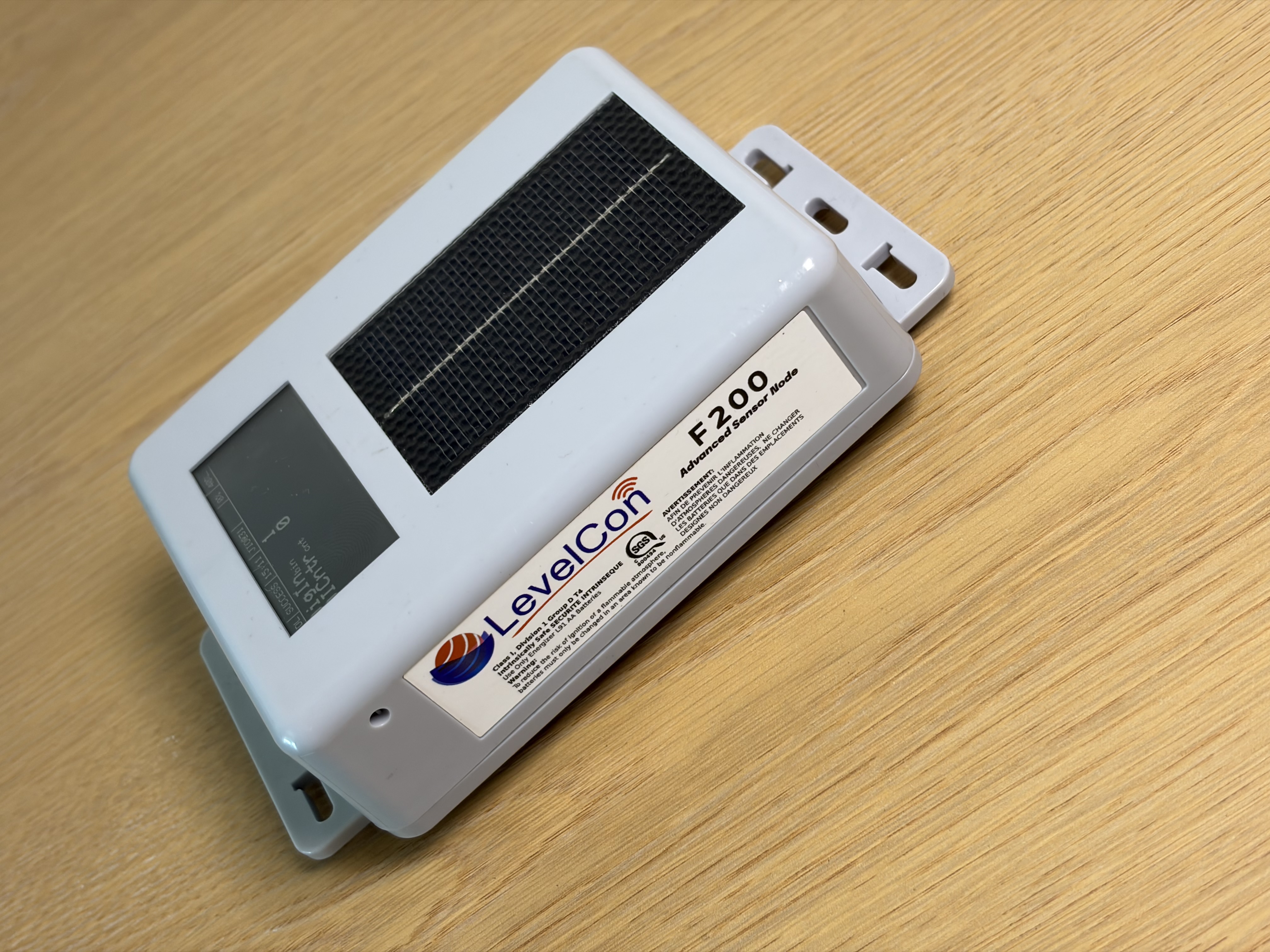

The F200 up close
F200 questions, answered
Got questions about LevelCon remote tank monitoring? Here are answers to the most common queries.
The F200 connects over 4G LTE cellular, with a built-in accelerometer that activates the multi-GNSS engine when movement is detected for precise asset location reporting.
When configured for two reports per day, the F200 delivers 5+ years of operation between service visits, powered by a serviceable 6,000 mAh primary battery and integrated solar reservoir.
The F200 supports RS-485, RS-232, 4–20 mA, and 0–5 V inputs for connecting a wide range of analog and digital sensors. It also supports high-frequency pulse counting up to 16 MHz, all through a single watertight connector.
Yes. The F200 is IP67-rated and certified for Class I, Division 1, Group D hazardous locations with a T4 temperature rating, for installation at wellheads, tank batteries, and chemical storage sites.
Yes. A built-in always-on display shows live level, pressure, and temperature readings at the device, and the LevelCon cloud platform delivers fleet-wide visibility, alerts, and analytics remotely.
The F200 is rated for -40°C to +65°C operating temperature and -50°C to +80°C storage temperature, so it holds up in both arctic winters and desert summers.
Yes. The F200 supports major U.S. and global cellular carriers through flexible multi-carrier SIM configurations, providing reliable connectivity without being locked to a single network.
Ready to deploy the F200?
Tell us about your sites and we'll recommend the right F200 configuration for your fleet.
